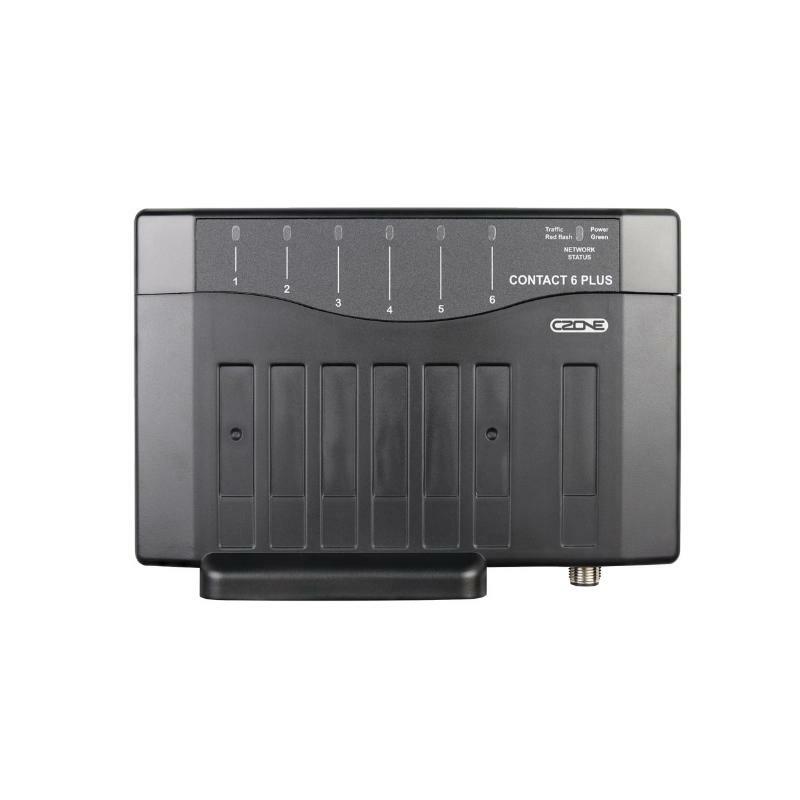

CZone Contact 6+

SKU: BLA-112814

Price:
Sale price$512.05 Regular price$539.00

Description

Utilising proven CZone digital switching technology the Contact 6 Plus is a robust and affordable digital switching solution. Featuring 6x 15A solid state ignition protected fused outputs with circuit bypass for system redundancy.

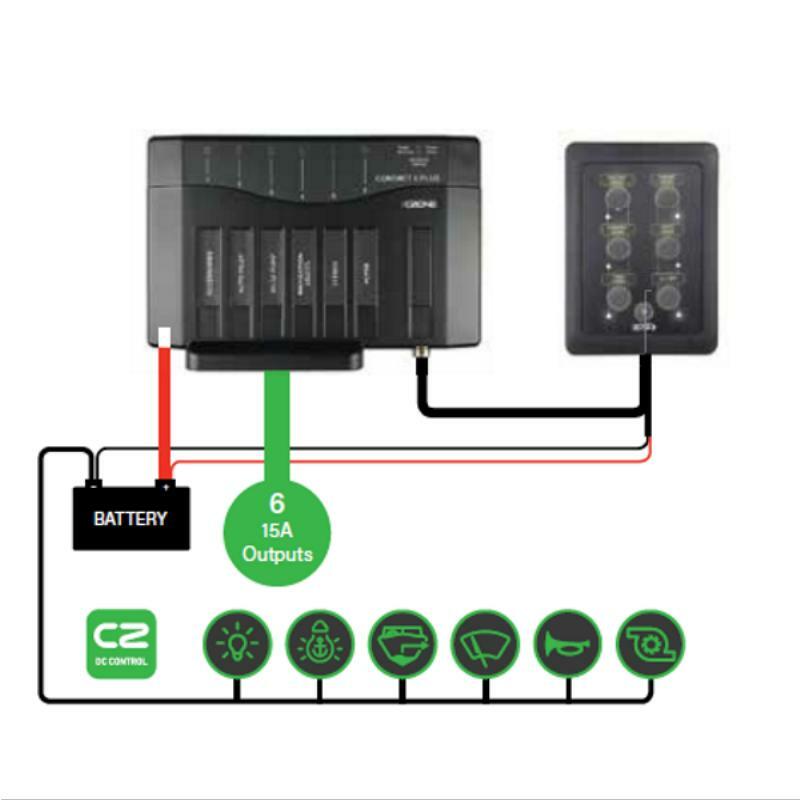

The Contact 6 Plus can be networked into an existing CZone system or installed stand alone with the CZone Waterproof Keypads or compatible Multi-Function Displays.

Features:

  • Circuit dimming & smooth start capability
  • Status LED’s for all outputs
  • Ultra low current draw
  • Built-in timer functions for circuits like live bait tanks
  • Voltage monitoring on the NMEA2000 Network
  • Built-in Load Shedding allows non-essential loads to be turned off to preserve battery life
  • Built-in default configurations selectable via dip switch
  • Affordable add-on module to larger CZone systems
  • Blown fuse detection and warning
Circuit protection ATC Fuse with Blown Fuse Alarms
NMEA2000 connectivity 1 x CAN Micro-C port
Output wire range 0.5 - 6mm (24AWG – 8AWG)
Output channels 6 x 15A 12/24V
Maximum current 60A Total Module Current
Dimming All channels, PWM @100Hz
Power supply M6(1/4”) Positive Terminal (9-32V)
Network Supply voltage 9-16V via NMEA2000
Circuit bypass Mechanical Fuse Bypass on all Channels
Ingress protection IPx5 (mounted vertical)
Compliance CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected
Power consumption max 75mA
Power consumption standby 0.3mA
Warranty period 2 years
Operating temperature range -15C to +55C
Storage temperature range -40C to +85C
Dimensions (W x H x D) 202.5mm x 128.5mm x 45mm
Weight 600g (1.32lbs)
