Description

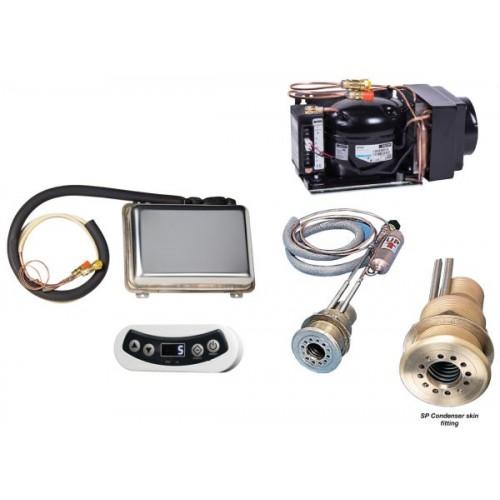

12/24 volt ITC+ controlled, self pumping (SP) seawater-cooled refrigeration unit suitable for mounting in new or existing cool boxes and recommended for tropical applications or installations that conventional air-cooled compressor is not practical. The power saving advantages of the ITC logic is teamed with the even greater efficiency of self pumping, seawater-cooled compressor. It is cooled by a uniquely designed heat exchanger that is incorporated into a dual-purpose through hull skin fitting which is most commonly used as a galley sink outlet. High efficiency and quiet operation is achieved through the full flow heat exchange that eliminates the requirement for compressor cooling fans or water pumps, both of which can contribute to substantial power drain. The through hull fitting is manufactured from saltwater resistant brass with the internal heat exchanger being constructed from copper nickel alloy. There is a one metre, pre-gassed line from the through hull fitting to the compressor and a three metre line from the compressor to the eutectic type holding plate, both featuring re-openable quick-fit connectors for ease of installation. The stainless steel holding plate, with an average holding temperature of minus 9ºC, can be mounted at any angle high up in the cool box.Features:Seawater-cooled compressor for effective and silent coolingITC Display for control of the fridge/freezerITC and ECO system Logic for power saving efficienciesStainless steel holding plate for durabilityOther Details:Max Box Volume Fridge: 100LMax Box Volume Freezer: 35LCompressor Type: BD35FCompressor Unit Dim. (H x W x L): 155mm x 135mm x 210mmHolding Plate Dim. (H x W x D): 210mm x 300mm x 60mmWeight: 15kgSpare Parts:381912 Replacement zinc anode for skin fitting
