Description

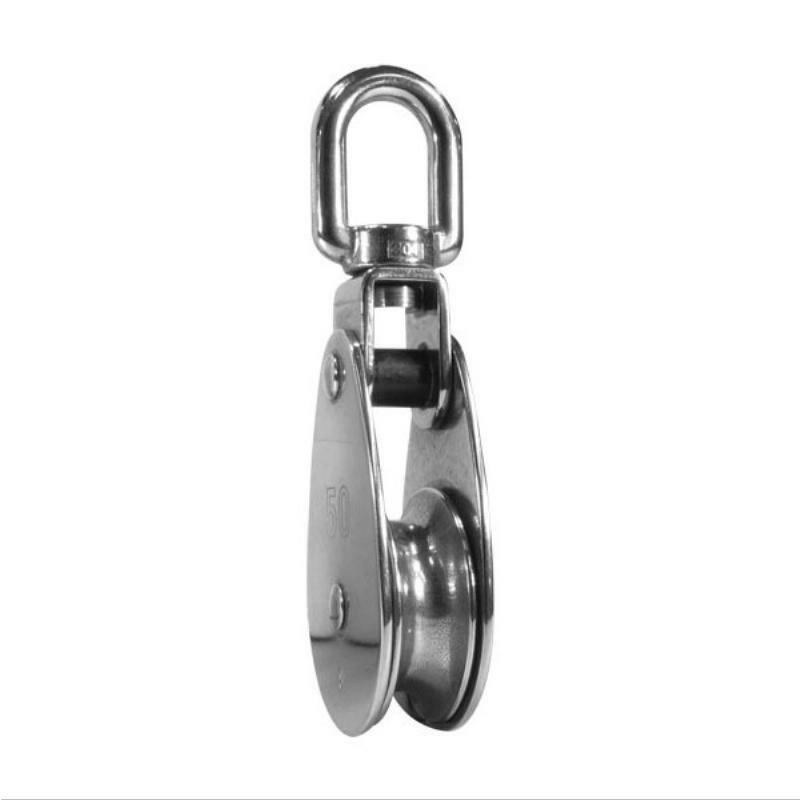

304 grade stainless steel cheek blocks with choice of single, brass bushed stainless steel or nylon sheave. Swivelling bale head.
Heavy construction for commercial applications.
| CASSELL PART NUMBER | SHEAVE DIAMETER | MAXIMUM ROPE DIAMETER | LENGTH (A) | WIDTH (B) | SHEAVE WIDTH (C) | SWIVEL DIAMETER (D) | MWL |
|---|---|---|---|---|---|---|---|
| BLA-166501 | 25mm | 10mm | 89mm | 27mm | 23mm | 13mm | 375kg |
| BLA-166506 | 32mm | 12mm | 104mm | 36mm | 22mm | 15mm | 425kg |
| BLA-166514 | 50mm | 14mm | 143mm | 54mm | 28mm | 19mm | 700kg |
