Description

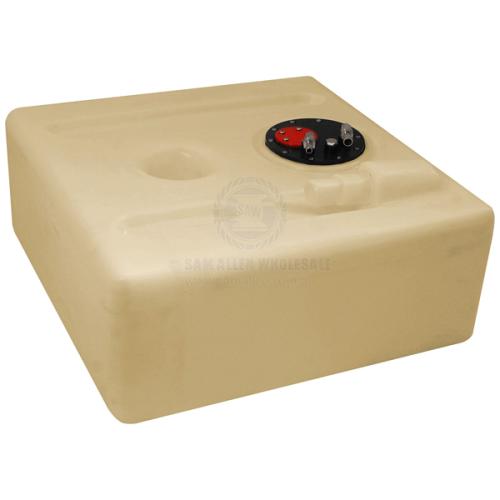

Moulded using high density polyethylene, suitable for petrol or diesel.
• Features include a removable inspection port, vented cap, 38mm filler port suits standard refuelling hose, stepped Dia. 16mm (5/8 inch) / Dia. 19mm (3/4 inch) tail for external breather, 10mm tail for fuel hose, blanked 1/4 inch BSP port for a second fuel pickup or diesel return and provision for a standard 5 hole fuel sender or gauge.
• ISO 21487 CE certification.
| Part No. | 373802 |

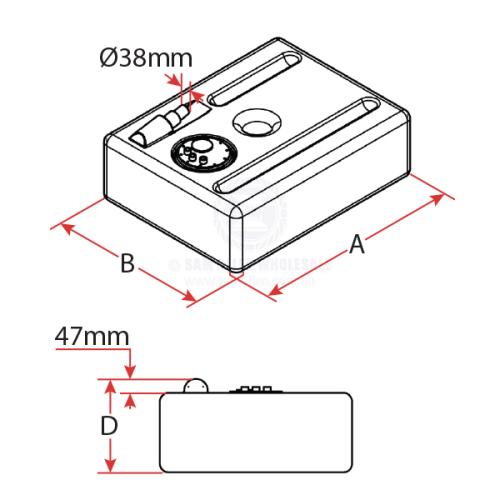

| Length | 650mm (A) |
| Width | 650mm (B) |
| Height | - |
| Height D | 317mm |
| Capacity | 96Ltr |
| Part No. | 373804 |
| Length | 850mm (A) |
| Width | 650mm (B) |
| Height | - |
| Height D | 317mm |
| Capacity | 128Ltr |
| Part No. | 373806 |
| Length | 1250mm (A) |
| Width | 650mm (B) |
| Height | - |
| Height D | 317mm |
| Capacity | 188Ltr |

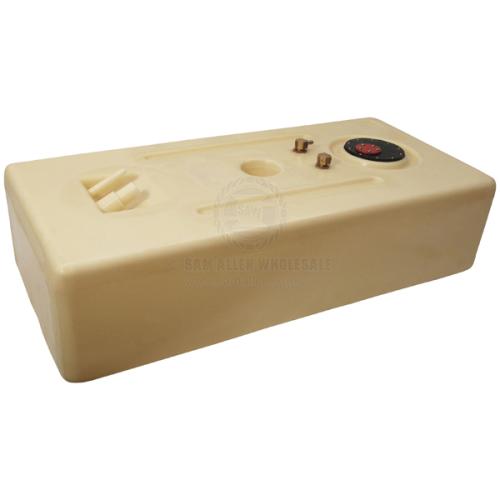

| Part No. | 373808 |
| Length | 1240mm (A) |
| Width | 580mm (B) |
| Height | 300mm (C) |
| Height D | 375mm |
| Capacity | 210Ltr |
| Part No. | 373810 |
| Length | 1450mm (A) |
| Width | 800mm (B) |
| Height | 320mm (C) |
| Height D | 385mm |
| Capacity | 347Ltr |
