Description
Moulded using high density polyethylene, suitable for petrol or diesel.
• Features include a removable inspection port, vented cap, stepped dia. 16mm (5/8 inch) / dia 19mm (3/4 inch) tail for external breather, 10mm tail for fuel hose, blanked 1/4 inch BSP port for a second fuel pickup or diesel return and provision for a standard 5 hole fuel sender or gauge.
• ISO 21487 CE certification.

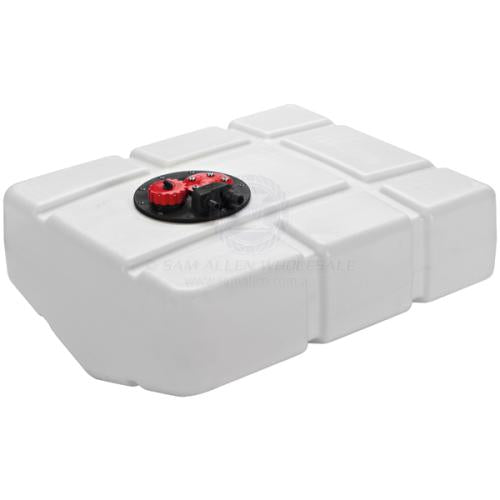

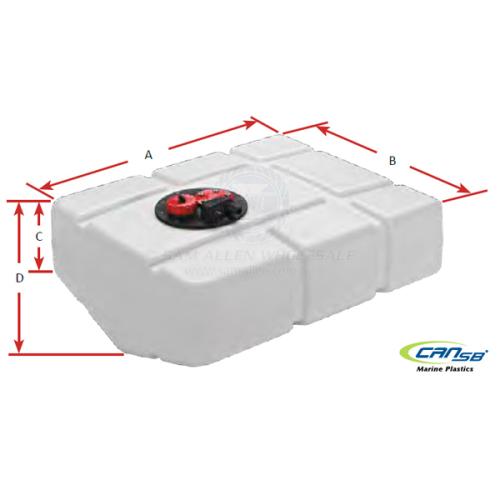

| Part No. | 37376 |
| Length | 600mm (A) |
| Width | 500mm (B) |
| Height | 150mm (C)* |
| Depth (D)* | 230mm |
| Note | * Tank height dimension excludes fittings (+30mm). |

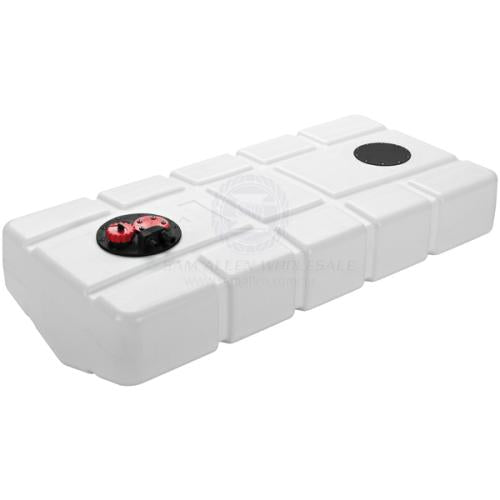

| Part No. | 37378 |
| Length | 1070mm (A) |
| Width | 500mm (B) |
| Height | 150mm (C)* |
| Depth (D)* | 230mm |
| Note | * Tank height dimension excludes fittings (+30mm). |
