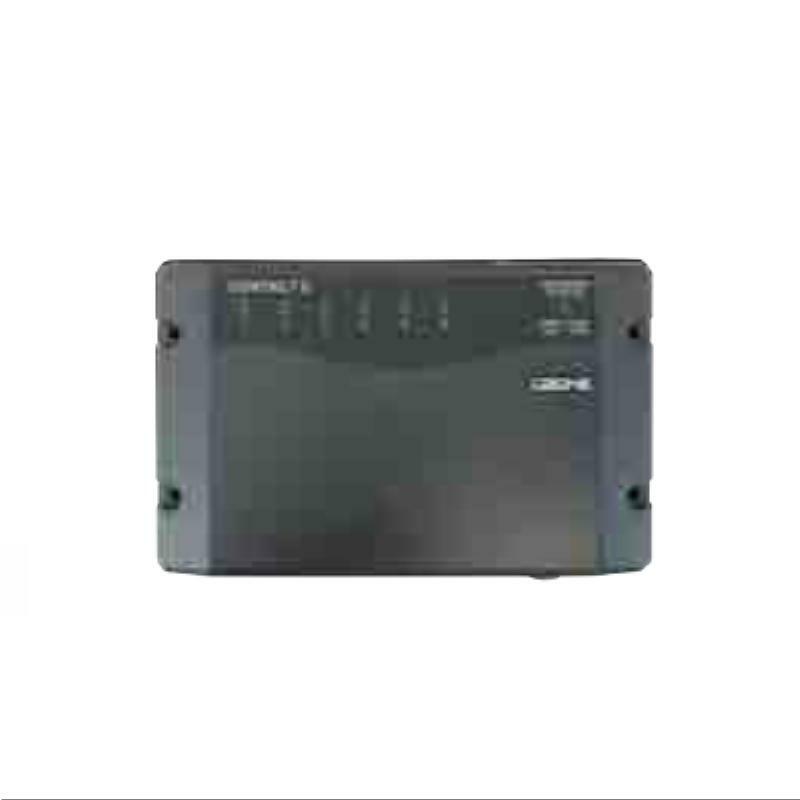

CZone Contact 6

SKU: BLA-112817

Voltage: 12/24V
Sale price$398.90 Regular price$419.90


The Contact 6 is a digital control and monitoring module that can be networked with other CZone products or a stand alone.

The Contact 6 has six independent channels that are positively or negatively switched and is ideal for smaller marine applications or recreational and specialty vehicles.

  • Entry level digital switching module for Marine and RV applications
  • Stand alone or networked with other CZone products
  • Compatible with CZone integrated Multi Function Displays (MFDs)
  • Six independent relay channels with positive and negative switching
  • Uses proven CZone technology
  • Internal auto-resetting PTC fuses (112818 only)
  • Electronic relay bypass switch
  • Status LEDs/fault codes for all channels
  • Low current draw – 35mA
  • Cost effective Amp connectors
  • IPX5 ingress protection
  • NMEA2000 compliant
BLA Code 112817 112818
Output Channels 6 x Relay 6 x Relay
Output Ratings 7.5A max per channel 7.5A max channel
LED Status indication Yes Yes
Parallel Yes Yes
Dimming No Yes
Current Sensing No No
Circuit Protection External Internal PTC Fuses (auto reset)
Overcurrent Alarm No No
Circuit Bypass Yes (electronic) Yes (electronic)
Connector Amp 18 Way Connector Amp 18 Way Connector
Max Wire Size 16AWG (1mm²) 16AWG (1mm²)
Maximum Current 30A Continuous 30A Continuous
Power Consumption 35mA (standby) 35mA (standby)
Ingress Protection IPx5 IPx5
Communication NMEA 2000 NMEA 2000
Operating Temp -15 °C to +55 °C (5 °F to 131 °F) -15 °C to +55 °C (5 °F to 131 °F)
Certification CE, NMEA CE, NMEA
