DF-9106 - Marine Engine Mounts

SKU: EM-DF-9106

Sale price$519.00

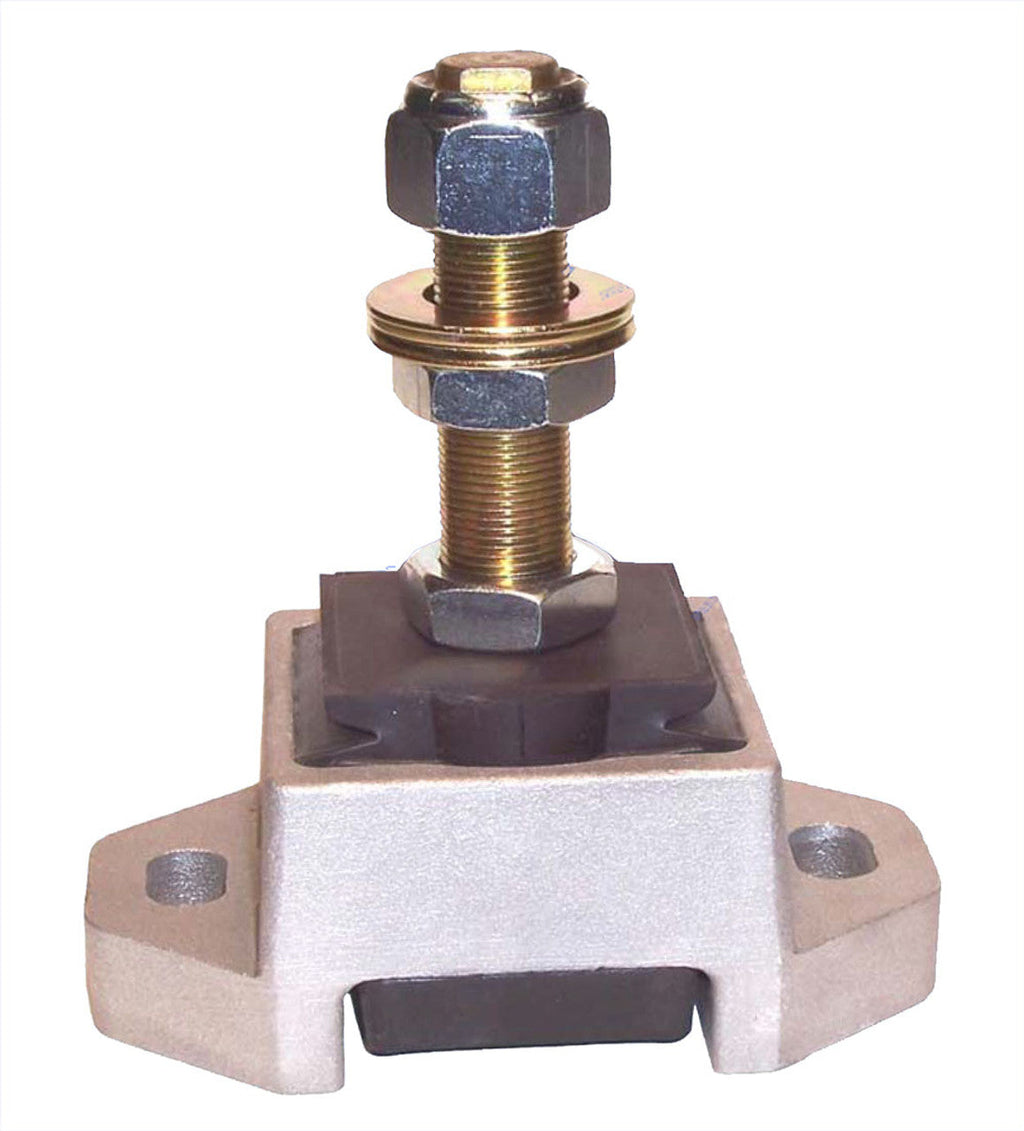

Dual Flex Marine Mount - DF-9106 Suitable for Caterpillar & Cummins Diesel engines Cat - 3116/3126/C7/C9 Cummins - 6C Series The DF-9106 Engine Isolator Mount is specifically designed for In-Line Six Cylinder Diesel configurations in the 300 - 485 Horsepower range. This mount is a proven design developed to absorb the angular prop thrust loads exerted at peak torque minimizing forward angular movement as well as side to side movement in rough seas. Features a heavy duty aluminum casting - with durable oil and fuel resistant elastomer element. Low profile mount - requires only 3 1/2” minimum clearance from base to top of leveling nut. Mount comes complete with three nuts: leveling, locking and full secondary lock, plus two washers. Easy installation with full 1” threaded stud for vertical height adjustment and aluminum base cast with 1/2” slotted mounting holes for 1/2” bolts or lag screws on 5” centers. Studs, nuts and washers zinc trivalent plated for corrosion resistance. Combined Engine & Transmission Weight With 4 Point Mountings 1800 to 2400lbs. DF-9106
