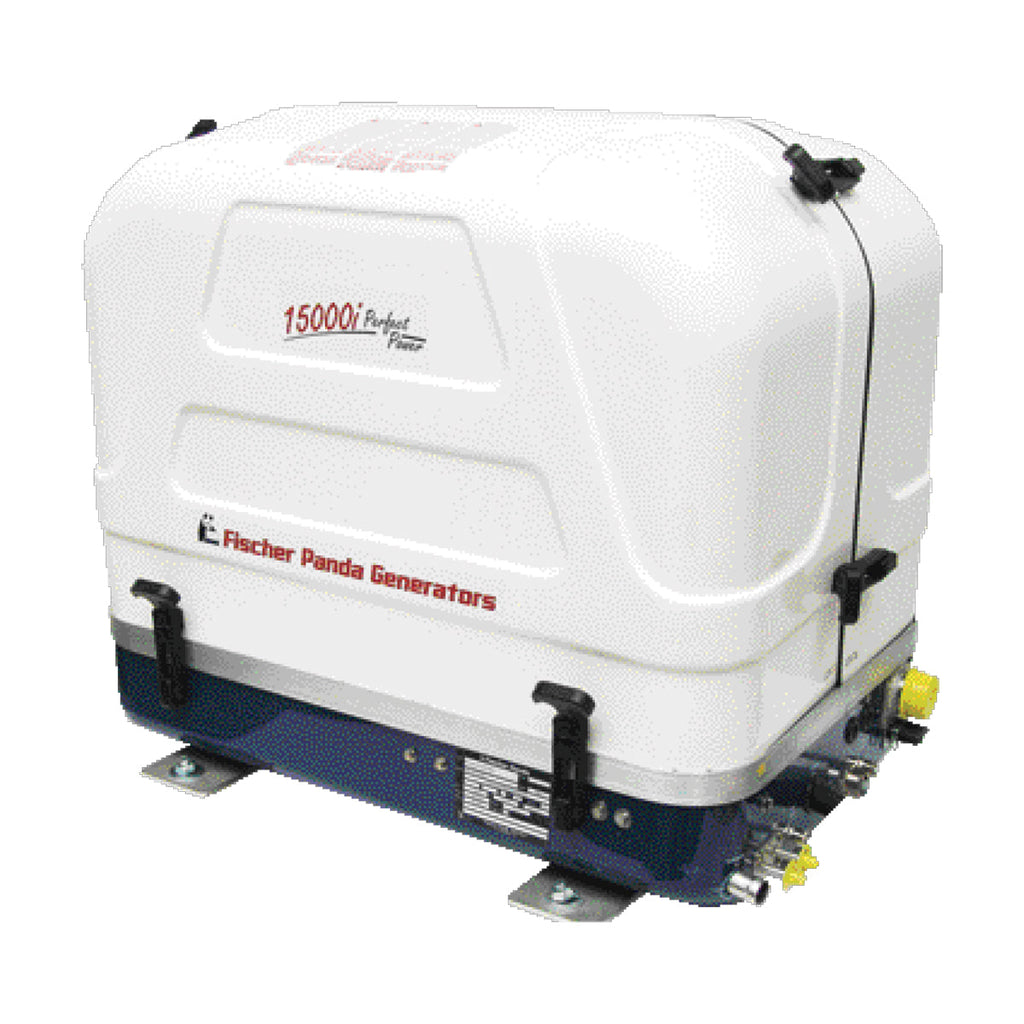

The iSeries generators are the first of the next generation of compact, super silent and powerful generators from Fischer Panda.
Using modern diesel engines which meet the latest emission standards and variable speed technology, the operating speed is adjusted to match the load to ensure efficiency while supplying extremely stable voltage and frequency.
Fischer Panda iSeries generators are fitted with highly regarded sound insulation and water cooling.
They have been especially designed to be lightweight and compact giving you up to 30% savings in weight and space.
Features:
- Parallel connection of two iSeries generators of the same model
- Load dependent variable speed technology: 2200-2800RPM (1500-2700RPM for the 45i)
- Compact installation due to small size and low weight
- Highly efficient, maximum energy
- Environmentally friendly with low fuel consumption
- Easy installation reduces costs, all connectors pre-fitted to base
- Dual circuit freshwater cooling via heat exchanger
- Pure sine wave is ideal for sensitive electronics
- Electronic controlled voltage and frequency regulation
- Voltage stability 230Vac ± 3% (400Vac ± 3% for the 45i)
- Frequency stability 50Hz ± 2%
- High starting capacity for air conditioners / diving compressors
- Panda iControl LCD display; dual remote panel options available
- Electric starting, auto starting capable
- Automatically stops under alarm state
- 2 year warranty, 1 year commercial warranty
-
Standard Inclusions:
SP33337608 Remote iControl and monitoring panel
SP33337324 Pierburg 12V remotely mounted fuel lift pump
55-21.07.03.043P PMGi 4800 Inverter
55-21.07.03.046P PMGi 25 Inverter
55-21.07.03.042P PMGi 8000 Inverter
55-21.07.03.041P PMGi 10000 Inverter
55-21.07.03.017P PMGi 15000 Inverter
Other Details:
| Code |
Description |
Dimensions L x W x H |
Total Weight Generator + Inverter kg |
Sound Level 7m/3m/1m dB |
Nominal Output |
Continuous Output kW |
||
|---|---|---|---|---|---|---|---|---|
| Generator | Inverter | kW | kVA | |||||
| 337019 | Panda 4800i PMS 230V 50Hz 4.8kVA | 580 x 370 x 545 | 80 | 7.9 | 54/64/68 | 3.8 | 4.8 | 3.3 |
| 337022 | Panda 5000i.Neo PMS | 422 x 450 x 508 | 75 | 7.9 | 54/64/68 | 0-4,0 | 5 | 0-3,6 |
| 337042 | Panda 8000i PMS 230V 50Hz 8kVA | 520 x 445 x 545 | 110 | 12.3 | 52/62/67 | 6.4 | 8 | 5.5 |
| 337044 | Panda 10000i PMS 230V 50Hz 10kVA | 536 x 445 x 555 | 120 | 12.3 | 54/64/68 | 8 | 10 | 7 |
| 337056 | Panda 15000i PMS 230V 50Hz 15kVA | 650 x 465 x 589 | 162 | 17.4 | 54/64/68 | 12 | 15 | 10.8 |
| 337082 | Panda 25i PMS 230V 50Hz 25kVA | 840 x 520 x 664 | 263 | 25 | 55/60/70 | 20 | 25 | 18 |
