Description

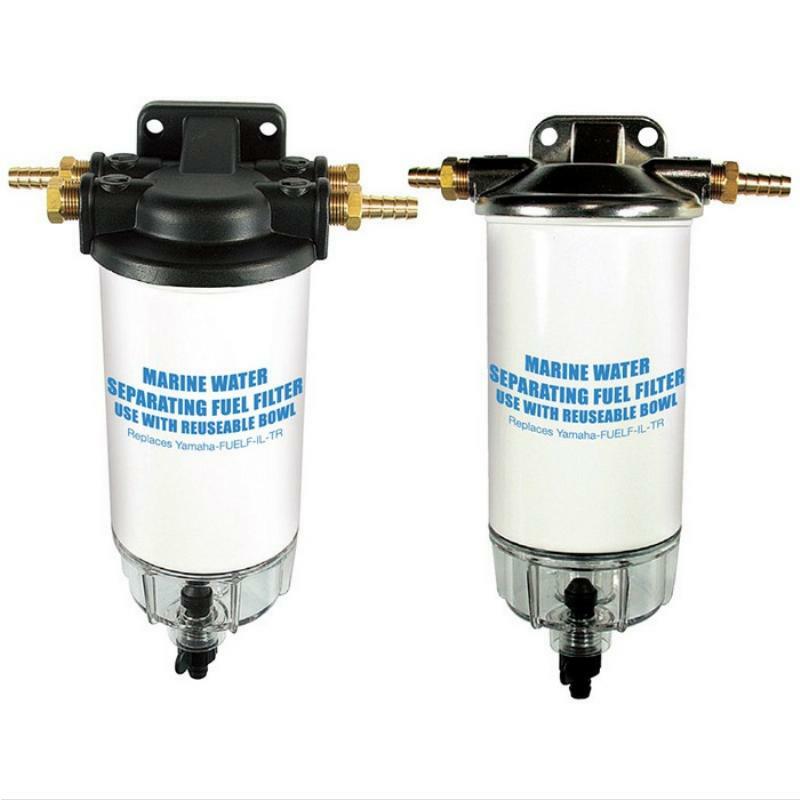

Long Fuel Filters with Clear Bowl.
- Complete fuel filter and water separating assembly with long filter producing a flow rate of 90 US GPH at 10 micron filtration, to meet the requirements of Yamaha® Motor Corporation for outboard engine applications.
- Assembly includes a choice of cast alloy or cast stainless steel filter head, replaceable long filter element, clear bowl drained via a screw in plug, two brass tails to suit 8mm hose and two 3/8" NPT brass plugs.
- Brass tails to suit 10mm hose are optional.
- Two each inlet and two outlet ports have 3/8" NPT internal threads.
- Head is configured to interchange with Yamaha® OEM components.
- Filter element is configured to accept the 200482 clear bowl.
- 275mm high x 106mm wide.
- 8mm mount holes.
