Description

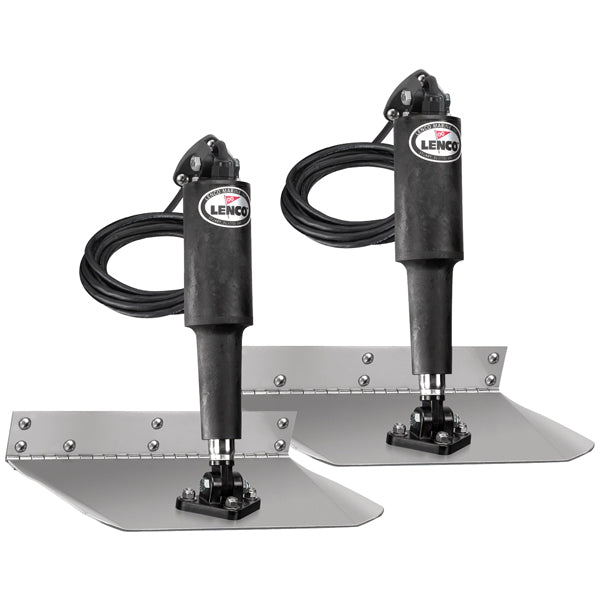

2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8 inch flared trailing edge and 1/8 inch diameter hinge pin.
• 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
• 2 x actuator extension wiring harness (6m) with Deutsch connectors.
• 1 x set of stainless steel fasteners.
• 2 x upper mounting bracket with gland seal.
• 2 x lower mounting bracket.
• Lenco owner’s installation manual.
• 5 Year Warranty (Recreational Use Only).
| Part No. | 55430 |
| Switch Kit | Not Included |
| Volts | 12V |
| Size (L x W) | 9 inch (228mm) x 9 inch (228mm) |
| Hinge Height | 51mm |
| Min. Transom Height | 356mm |
| Approx. Boat Length | 4.3Mtr - 5.5Mtr |
| Finish | Electro Polished |
| Note | Switches sold separately. 24 Volt option available. |
| Part No. | 55432 |
| Switch Kit | Not Included |
| Volts | 12V |
| Size (L x W) | 9 inch (228mm) x 12 inch (305mm) |
| Hinge Height | 51mm |
| Min. Transom Height | 356mm |
| Approx. Boat Length | 4.9Mtr - 7.6Mtr |
| Finish | Electro Polished |
| Note | Switches sold separately. 24 Volt option available. |
| Part No. | 55434 |
| Switch Kit | Not Included |
| Volts | 12V |
| Size (L x W) | 9 inch (228mm) x 18 inch (457mm) |
| Hinge Height | 51mm |
| Min. Transom Height | 356mm |
| Approx. Boat Length | 6.7Mtr - 9.2Mtr |
| Finish | Matte |
| Note | Switches sold separately. 24 Volt option available. |
| Part No. | 55440 |
| Switch Kit | Not Included |
| Volts | 12V |
| Size (L x W) | 12 inch (305mm) x 12 inch (305mm) |
| Hinge Height | 51mm |
| Min. Transom Height | 356mm |
| Approx. Boat Length | 5.2Mtr - 9.2Mtr |
| Finish | Matte |
| Note | Switches sold separately. 24 Volt option available. |
| Part No. | 55442 |
| Switch Kit | Not Included |
| Volts | 12V |
| Size (L x W) | 12 inch (305mm) x 18 inch (457mm) |
| Hinge Height | 51mm |
| Min. Transom Height | 356mm |
| Approx. Boat Length | 7.9Mtr - 11Mtr |
| Finish | Matte |
| Note | Switches sold separately. 24 Volt option available. |
| Part No. | 55444 |
| Switch Kit | Not Included |
| Volts | 12V |
| Size (L x W) | 12 inch x 24 inch |
| Hinge Height | 51mm |
| Min. Transom Height | 356mm |
| Approx. Boat Length | 9.1Mtr - 13.4Mtr |
| Finish | Matte |
| Note | Switches sold separately. 24 Volt option available. |
