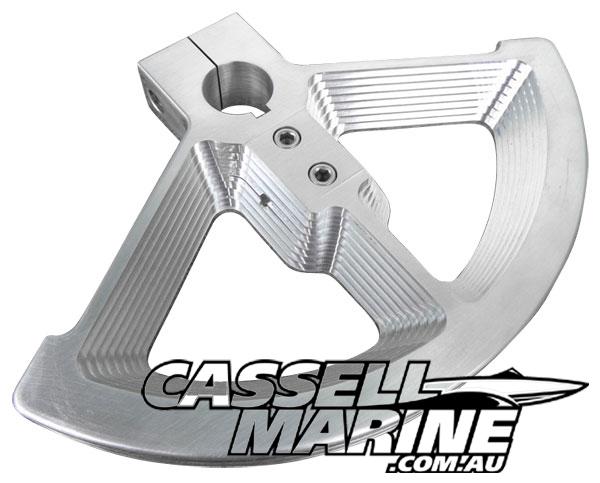

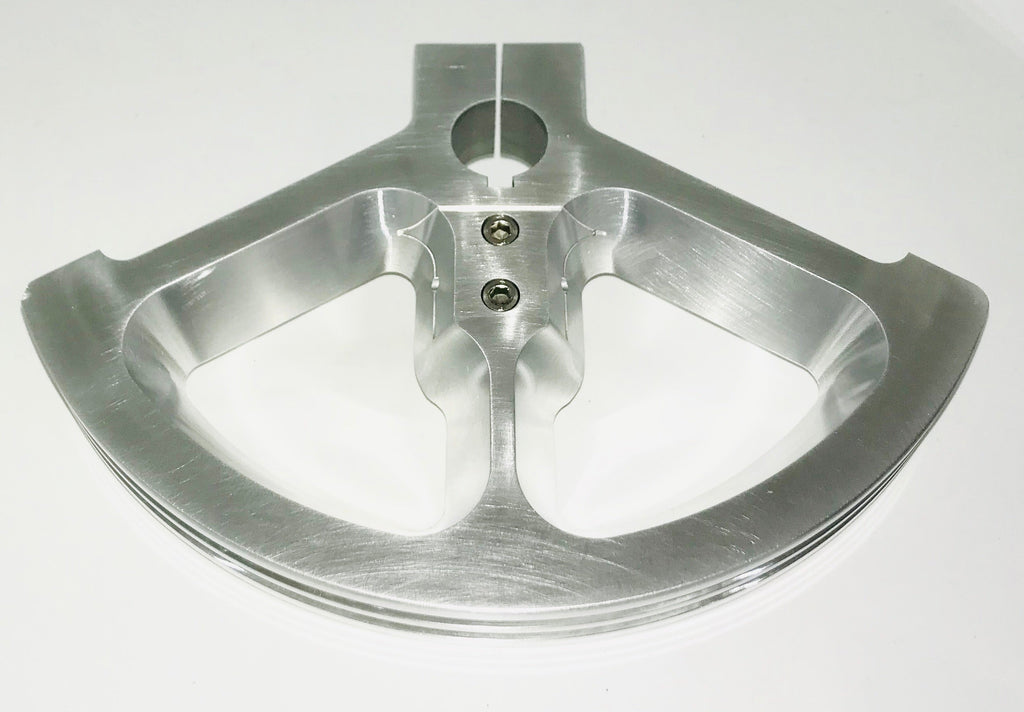

Quadrant suit 1" Steering Rudder

SKU: 495-209

Sale price$490.00


Direct replacement for your standard rudder quadrant.
Made from 6061-T6 aluminum. Standard 1" bore for 1" rudders, 1/4" keyway, 3/8" clamp hole for rudder, Top cable clamp features two milled in scallops to help "bite" into the standard 3/16" cable.
Top clamp has a built in clearance when tightened onto steering cable it will be flush with the top surface.
Supplied with 2x 1/4" corrosion resistance grade 8 bolts that screws into to 2 heli-coiled holes installed into the quadrant. Also supplied will be 2x 1/4"-20 lock nuts for safety.

Note: Current stock is smooth (no ribs)
