Description

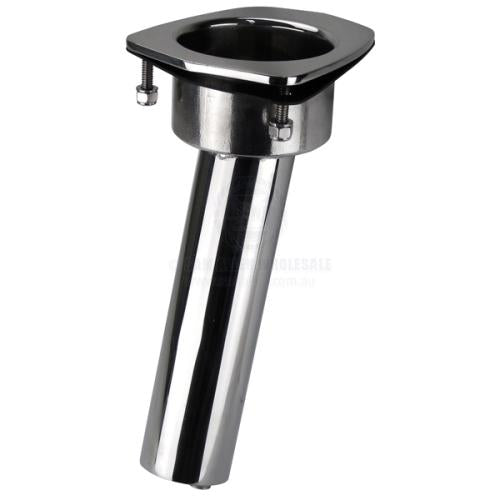

| 316G cast stainless steel, mirror polished. • Dual purpose, rod or cup holder. • Low profile streamlined design when installed. • Stainless steel 6mm gimbal pin. • Flush mounting style, 1/4 inch UNC bolts welded to the underside of the flange with washer and nyloc nut. • Black PVC insert to protect rods. • 12.5 mm O.D drain. |

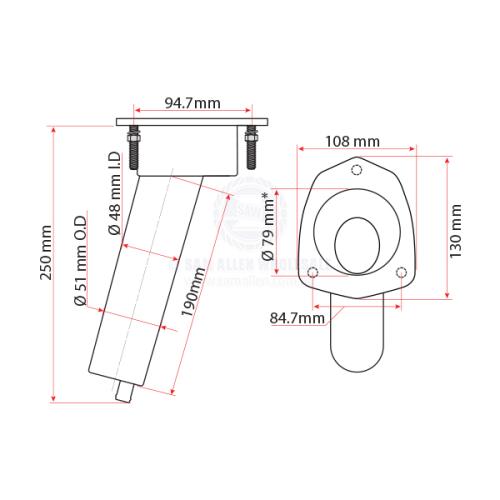

| SPECIFICATIONS |
| Part No. | 49460 |
| Type | Stainless Steel |
| Shaft Angle | 15° |
| Flange (W x L) | 108mm x 130mm |
| Cup Dia.* / Depth | 79mm* / 45mm |
| Overall Depth | 250mm |
| Shaft Length | 190mm |
| Shaft O.D. / I.D. | 51mm / 44mm |
| Mount Type | 1/4 inch UNC |
| Cut-Out | 86mm |
| Unit Qty | 1 |
| Note | *Note: Suits all coolers 79mm in diameter, suits some Yeti® coolers. Please check the diameter of your cooler. |
15deg angle
