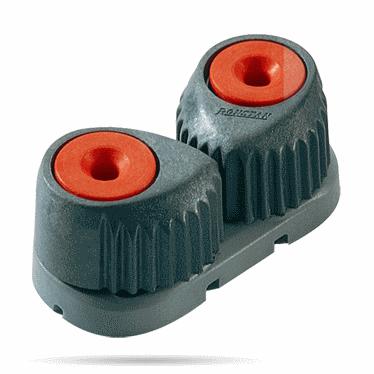

Ronstan Cam Cleats - Glass Fibre

SKU: RF5001

Size: RON-RF5001
Price:
Sale price$23.00

Description

Ronstan T-Cleats are manufactured from glass fibre using advanced techniques to deliver superior strength, holding power, light weight and corrosion resistance.

Available in two sizes, these composite cam cleats feature stainless steel multi-coil springs and self-lubricating slotted bearings ensuring consistently high performance even when subjected to high static loads.


PART NUMBER SIZE COLOUR ROPE CAPACITY HOLE SPACING FASTENERS DIMENSIONS
(L X W X H)
MAX WORKING LOAD BREAK LOAD WEIGHT
RON-RF5001 Small Red 2-8mm 27mm 2 x M4 48mm x 24mm x 20mm 75kg 150kg 20g
RON-RF5011 Medium Red 3-12mm 38mm 2 x M5 66mm x 31mm x 26mm 125kg 250kg 50g
