Description

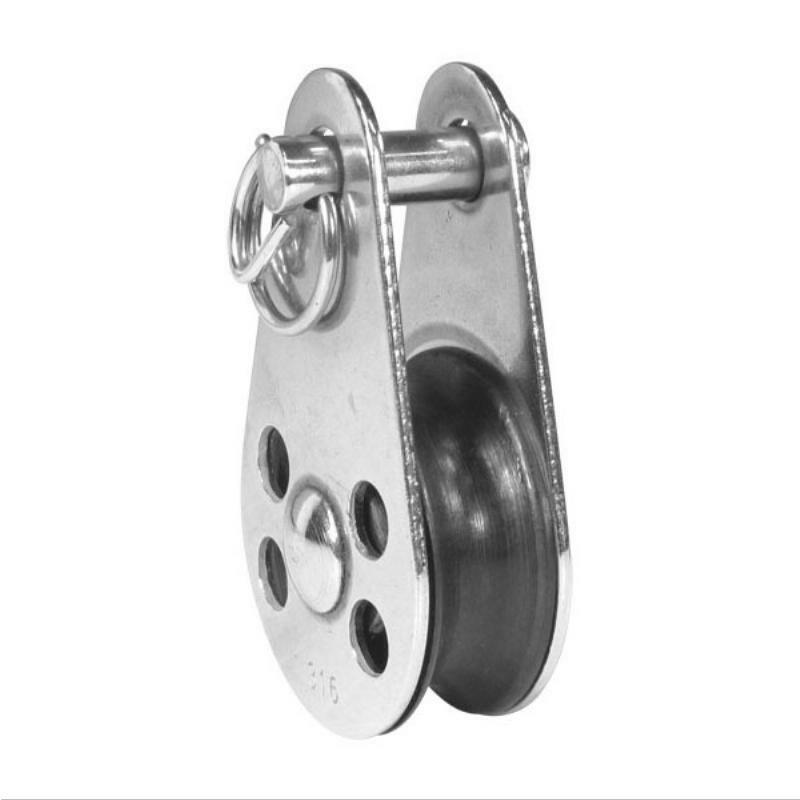

304 grade stainless steel cheeks with single black nylon sheave.
Choice of rivet top or removable clevis pin.
| CASSELL PART NUMBER | TOP TYPE | MAXIMUM ROPE DIAMETER | LENGTH (A) | WIDTH (B) | C | PIN DIAMETER |
|---|---|---|---|---|---|---|
| BLA-166486 | Pin | 6mm | 45mm | 25mm | 16mm | 6mm |
| BLA-166484 | Rivet | 6mm | 45mm | 25mm | 16mm | 5mm |
