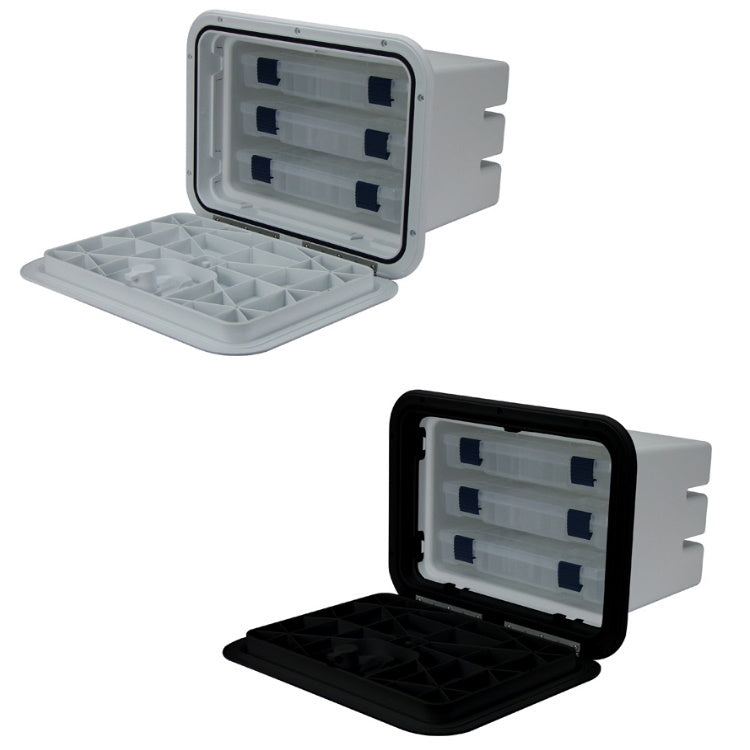

Description
• Designed for recess mounting.
• Concealed mounting holes.
• Door opens past 180 Degree.
• 10mm clearance from start of flange to beginning of screw hole.
• 316G stainless steel hinge.
• OEM can screw through the hinge into the deck for added strength and durability.
• In-laid gasket ensures a good seal every time.
• 2 saralon resin handles with a positive stop and click
• secured by a 316G stainless steel pin.
• Injection moulded tubs for a lifetime of use.
• UV resistant.
• Made in USA.
• 38280/38281 3 Plano 3600 Series Tackle Inserts.
| Part No. | 38280 |
| Colour | White |
| Draws | 3 |
| Overall Size (H x W x D) | 280mm x 383mm x 254mm |
| Cut Out | 235mm x 337mm |
| Corner Radius | 25mm |
| Mount Screws | 4mm c/s |
| Part No. | 38281 |
| Colour | Black |
| Draws | 3 |
| Overall Size (H x W x D) | 280mm x 383mm x 254mm |
| Cut Out | 235mm x 337mm |
| Corner Radius | 25mm |
| Mount Screws | 4mm c/s |
