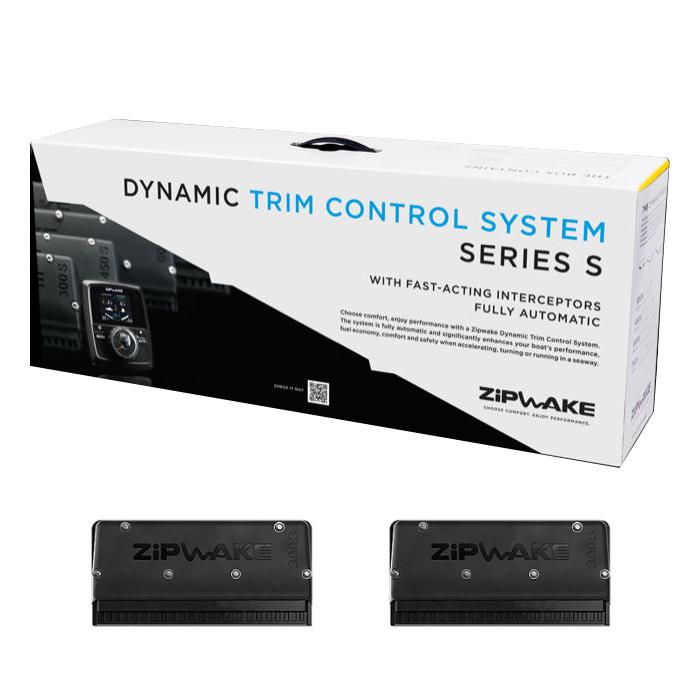

ZipWake Dynamic Trim Control System KB300-S Straight Kit

Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply.

All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of a calibration-free submersible electric servo within the interceptor unit. Its natural water cooling provides excellent working conditions for the brushless DC servo motor, which runs on 12-32 volts. The blade stroke takes 1.5 seconds, outperforming conventional trim tabs by at least a factor of 5.

Installation is made easy with an integral mounting plate and the option of a concealed or above-waterline, self-sealing, thru-hull cable fitting. The preferred mounting option is achieved by simply routing the servo cable differently. Each interceptor comes with the thru-hull cable fitting, cable covers and a practical drill template.

CASSELL PART NUMBER	MODEL	ZIPWAKE PART NUMBER	INTERCEPTOR	VOLTAGE	BLADE STROKE	MAX BOAT SPEED
ZIP-0580100	KB300-S	2011145	2 x Straight 300mm	12-32 V DC	30mm	60 Knots 69mph
