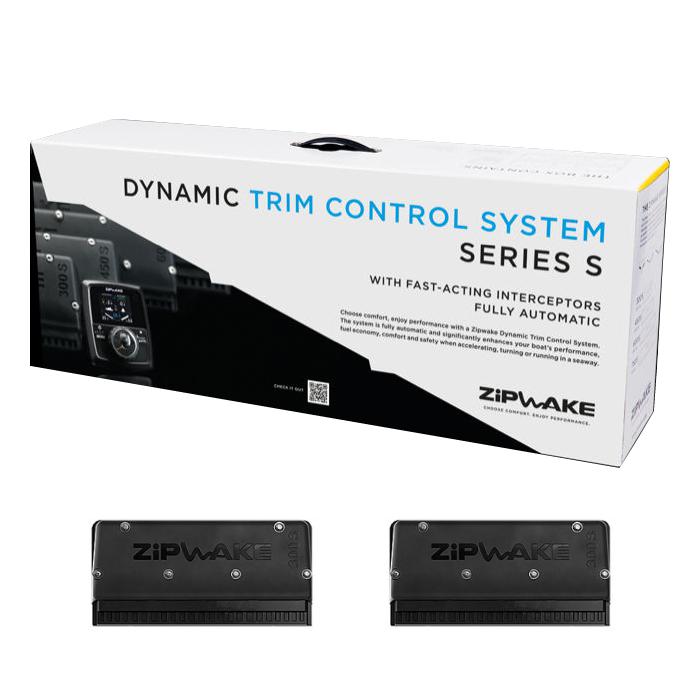

ZipWake Dynamic Trim Control System KB600-S Straight Kit

This Series-S Kit Box includes all parts needed to install a Zipwake Dynamic Trim Control System with one pair of fast-acting interceptors, plus the ability to add extra interceptors.

Any base installation can be expanded with up to two extra pairs of Series S interceptors, thus allowing a total of six interceptors without any need for additional connectors or power supply.

All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of a calibration-free submersible electric servo within the interceptor unit. Its natural water cooling provides excellent working conditions for the brushless DC servo motor, which runs on 12-32 volts. The blade stroke takes 1.5 seconds, outperforming conventional trim tabs by at least a factor of 5.

Installation is made easy with an integral mounting plate and the option of a concealed or above-waterline, self-sealing, thru-hull cable fitting. The preferred mounting option is achieved by simply routing the servo cable differently. Each interceptor comes with the thru-hull cable fitting, cable covers and a practical drill template.

• 1 x Bridge Control Panel
• 1 x Distribution Unit
• 2 x Series S Straight interceptors (600mm in length). Note that Chine, Intermediate & V-Shaped Interceptors are not included and must be purchased separately.
• 2 x 3m Interceptor Cables & Covers
• 1 x 4m Power Cable
• 1 x 1.5m M12 Extension Cable
